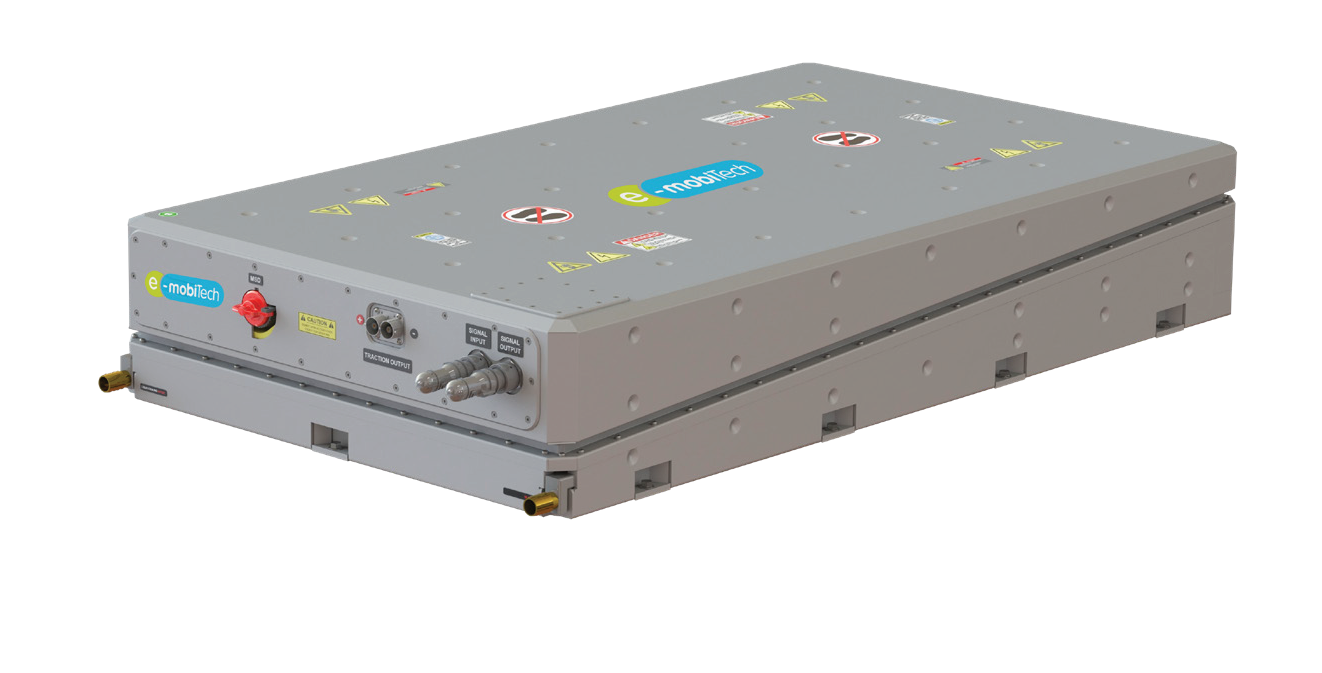

NMC 930 Battery (93kWh, 622V)
Energy & Power Optimized Battery Pack
DOWNLOADS
SYSTEM FEATURES
- NMC622 Cell Chemistry
- Up to 170 Wh/kg Pack Level Density
- Liquid thermal management
- Integrated BMS and CAN 2.0A Controlled
- Protection classes IP67 (IP6K9K possible)
- Integrated Precharge and Isolation Measurement
- Parallel Topology for Multiple Packs in One Vehicle
- Suitable for Light and Heavy Commercial Vehicle Applications, Busses, Trucks and Marine
BATTERY PACK SPECIFICATIONS
| ELECTRICAL DATA | VALUE | UNIT |
|---|---|---|
| Cell Type | NMC222 | |
| Energy (Installed / Usable) | 93.2 / 84 | kWh |
| Capacity | 150 | Ah |
| Nominal Voltage | 621.6 | V |
| Voltage - min. / max | 504 - 739.2 | V |
| Charge Power Cont. | 93 | kW |
| Charge Power Peak | 93 | kW |
| Discharge Power Cont. | 93 | kW |
| Discharge Power Peak | 160 - (Optional 250) | kW |
| Cycle Life Expectancy @90%DOD | >2000 | Cycles |
| MECHANICAL DATA | VALUE | UNIT |
| Pressure drop @10I/min and 25°C | <0.5 | bar |
| Operating Temp. during discharging | -20 ~ 55 | °C |
| Protection classes | IP67 | |
| Weight | 617 ± 10 (Optional 550) | kg |
| Dimension | 1657 x 952 x 290 | mm |
SYSTEM OPTION 1
Vehicle PDU
HV Distribution
SYSTEM OPTION 2
Battery System PDU
2-8 Parallel Battery Pack

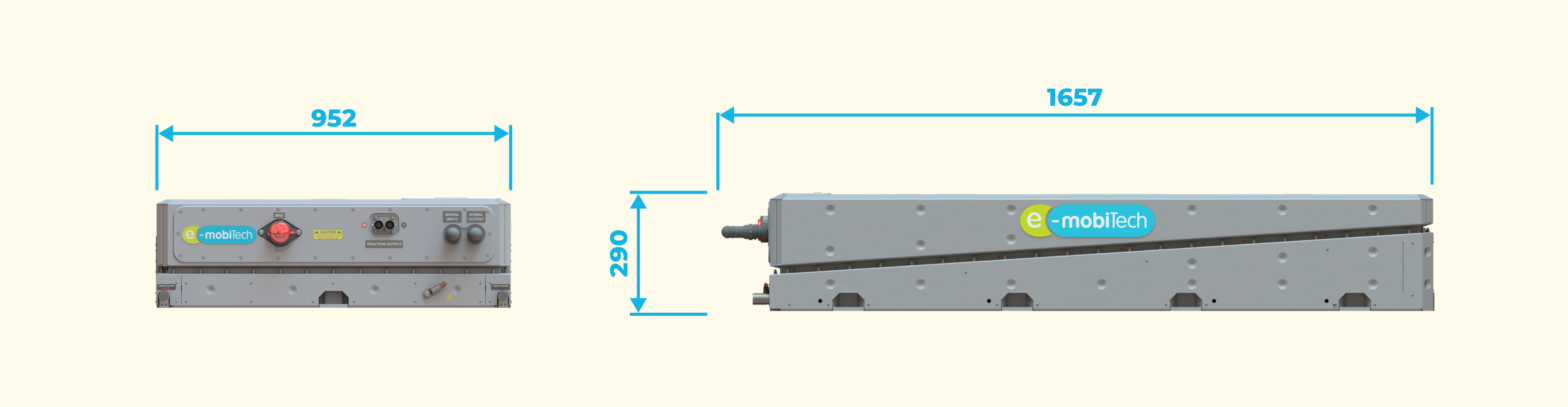

DIMENSIONS
3D CAD STEP FILE
NMC 930 Battery CAD STP File
